PrimeSight™ Flexible Cystoscope, Endosheath® & Accessories

PrimeSight™ Flexible Cystoscope, Endosheath® & Accessories

Request more information or set up EndoSheath trial today!



ENDOSHEATH

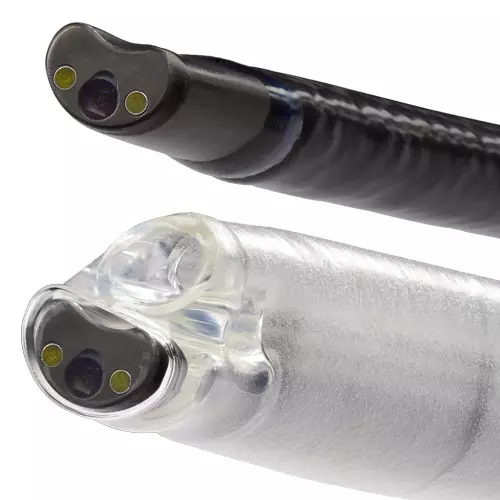

  • One innovation of PrimeSight endoscopy is that the working channel required for suction, biopsy, irrigation or other operative needs is incorporated into the EndoSheath protective barrier and not the PrimeSight endoscope. This innovation eliminates the difficult-to-clean channel which exists in conventional endoscopes.
  • Helps keep the capital equipment budget low since one PrimeSight scope can do the work of many conventional scopes
  • Reduced endoscope reprocessing and down time means that you can meet you endoscopy needs with fewer endoscopes. Plus, unplanned endoscopies can be more easily accommodated.
  • You can use the same scope for diagnostic and therapy procedures since the 1.5 mm or 2.1 mm working channel is incorporated into the sheath instead of the endoscope
  • Reduced chemical exposure for equipment lowers service and repair expenses
  • Reduced staff exposure to toxic disinfection chemicals

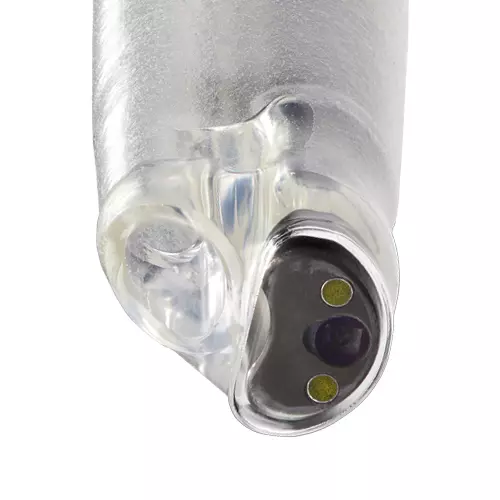

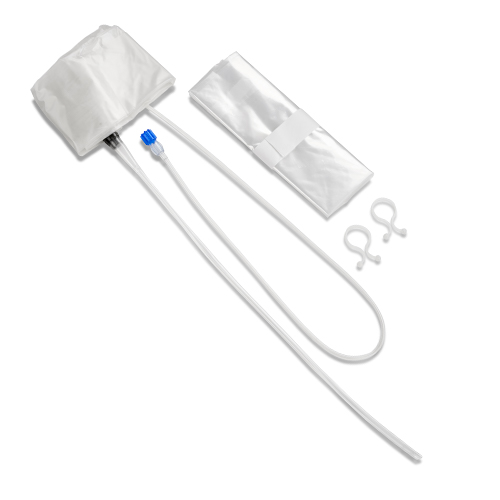

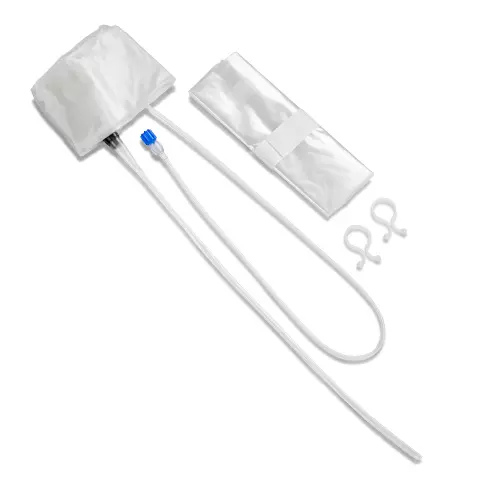

EndoSheath

The EndoSheath protective barrier is available in multiple models, each with a different size working channel, allowing you to configure the endoscope to fit the procedure. As a result, one endoscope can support a full range of diagnostic and therapeutic procedures.

Working channel sizes may vary but includes the following:

  • 1.5 mm – Diagnostic procedures, smaller patients
  • 2.1 mm – For therapeutic procedures

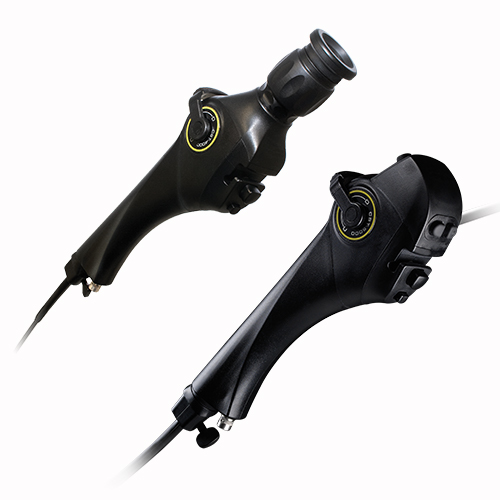

Flexible Endoscopes

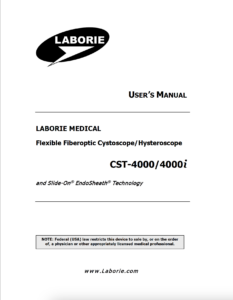

CST-4000 Fiberoptic Cystoscope

  • Length: 370mm, angulation: 215° up/140° down, field of view 110°
  • Outer diameter varies based on choice of EndoSheath Protective Barrier

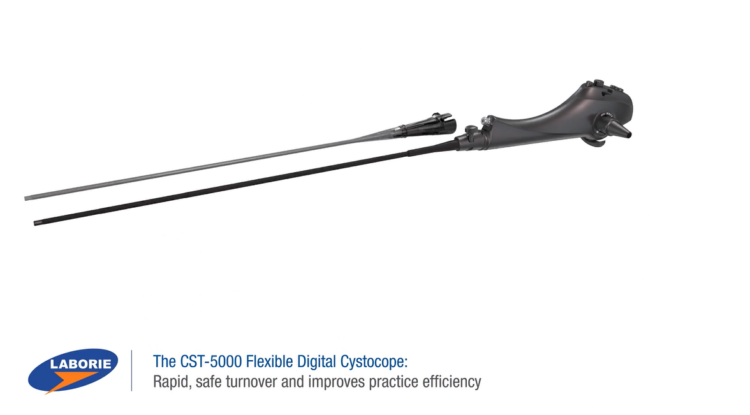

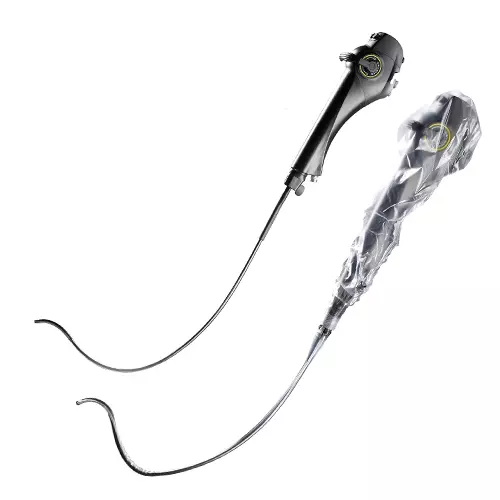

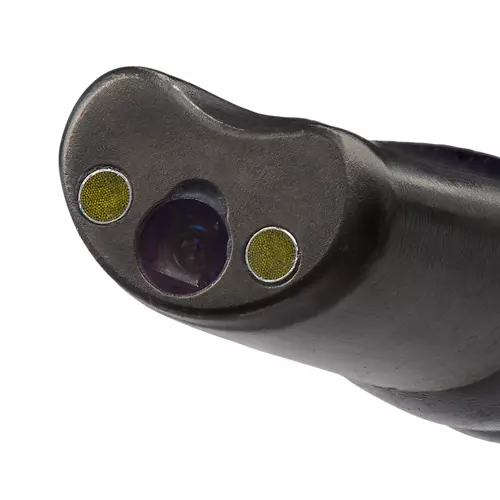

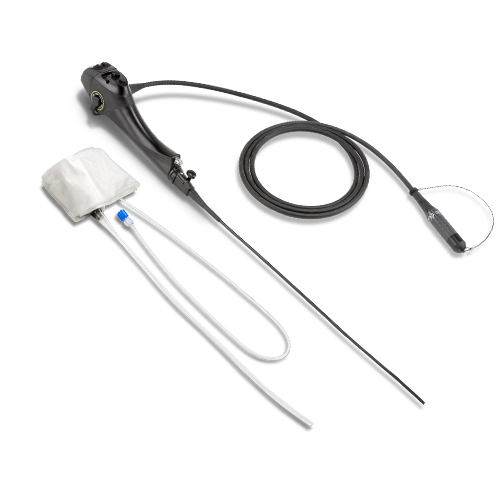

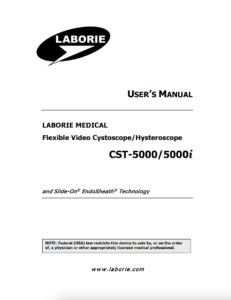

CST-5000 Video Cystoscope

  • Length: 370mm, angulation: 215° up/140° down, field of view 110°
  • Outer diameter varies based on choice of EndoSheath Protective Barrier

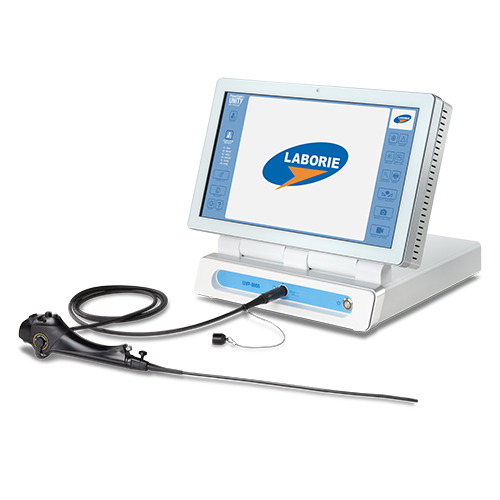

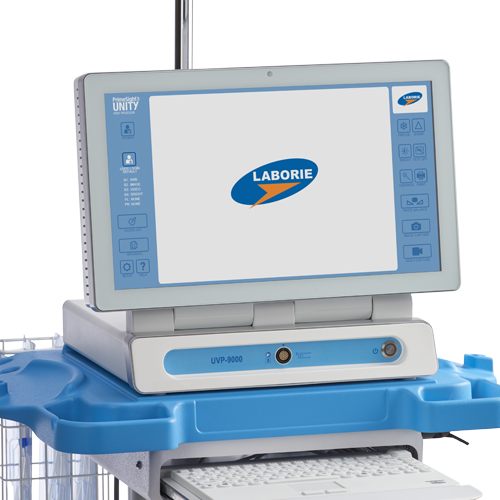

PRIMESIGHT UNITY

Width: 465mm

Depth: 370mm

Height: 136mm

Weight: 11.3 kg (25 lbs)

Storage: 500GB Internal Solid State Drive

Video Outputs: DisplayPort type (HDMI and DVI compatibility with adapter cable)

Additional USB ports: 3

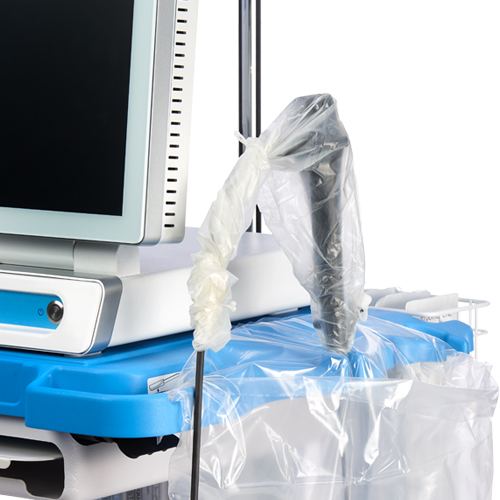

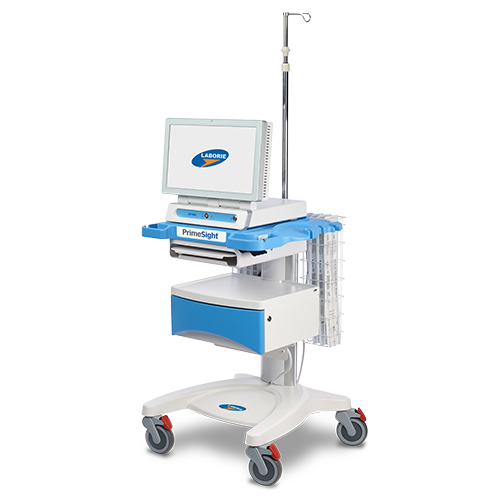

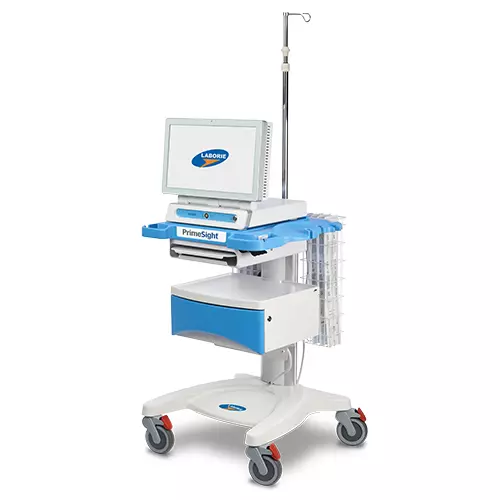

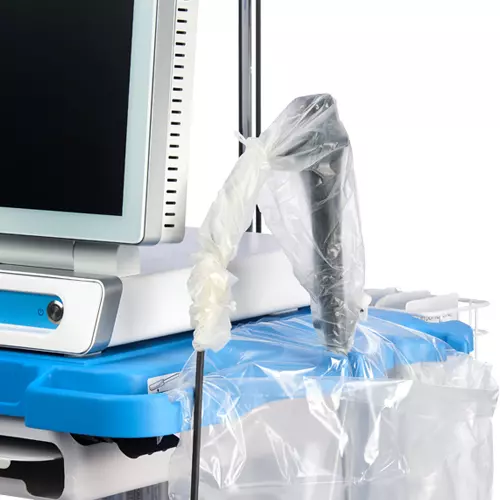

PRIMESIGHT UNITY Cart

DIMENSIONS (INCLUDING WHEEL BASE)

Width: 671mm

Height (without IV pole): 942mm; adjusts up to 1197mm

Height (with IV pole): <1696mm; adjusts to 2256mm

Depth: 611mm

Caster/wheel size: >125mm

Shelf size: 428mm (W) x 328mm (D)
