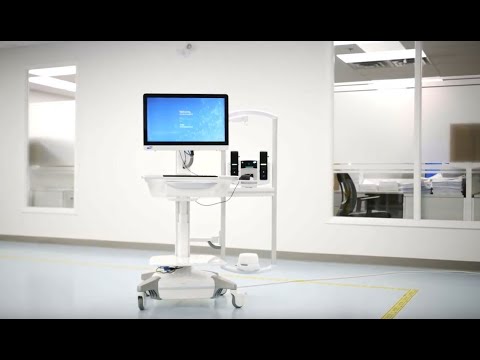

NXT™ Family of Urodynamics Systems

Request more information or set up a NXT trial today!



What is urodynamics?

Urodynamics is the investigation of the function of the lower urinary tract – the bladder and urethra – using physical measurements such as bladder pressure and flow rate.

Urodynamic studies provide extremely valuable diagnostic data for any of the following bladder dysfunctions: Urge Incontinence, Stress Incontinence, Urinary Retention, Urinary Frequency, Hesitancy and all other storage and micturition issues.

Urodynamic testing may consist of uroflowmetry, filling cystometry, pressure-flow study, urethral pressure profiles (UPP), valsalva leak point pressure (VLPP), and electromyography (EMG).

Laborie offers the complete solution for urodynamic testing. Our diagnostic equipment can be found in hospitals, private clinics, universities and research centers. We work with leading clinician-researchers and local universities to incorporate the most recent advancements and technical knowledge into our products while reflecting practical realities of the typical pelvic floor clinic

Laborie is passionate about bringing freedom and dignity to patients suffering from pelvic floor disorders through innovation in diagnostic and treatment options.

Learn from urodynamics experts

Learn the personal perspective from experts in the field about the role, benefits and optimal usage of urodynamics.

Watch video series

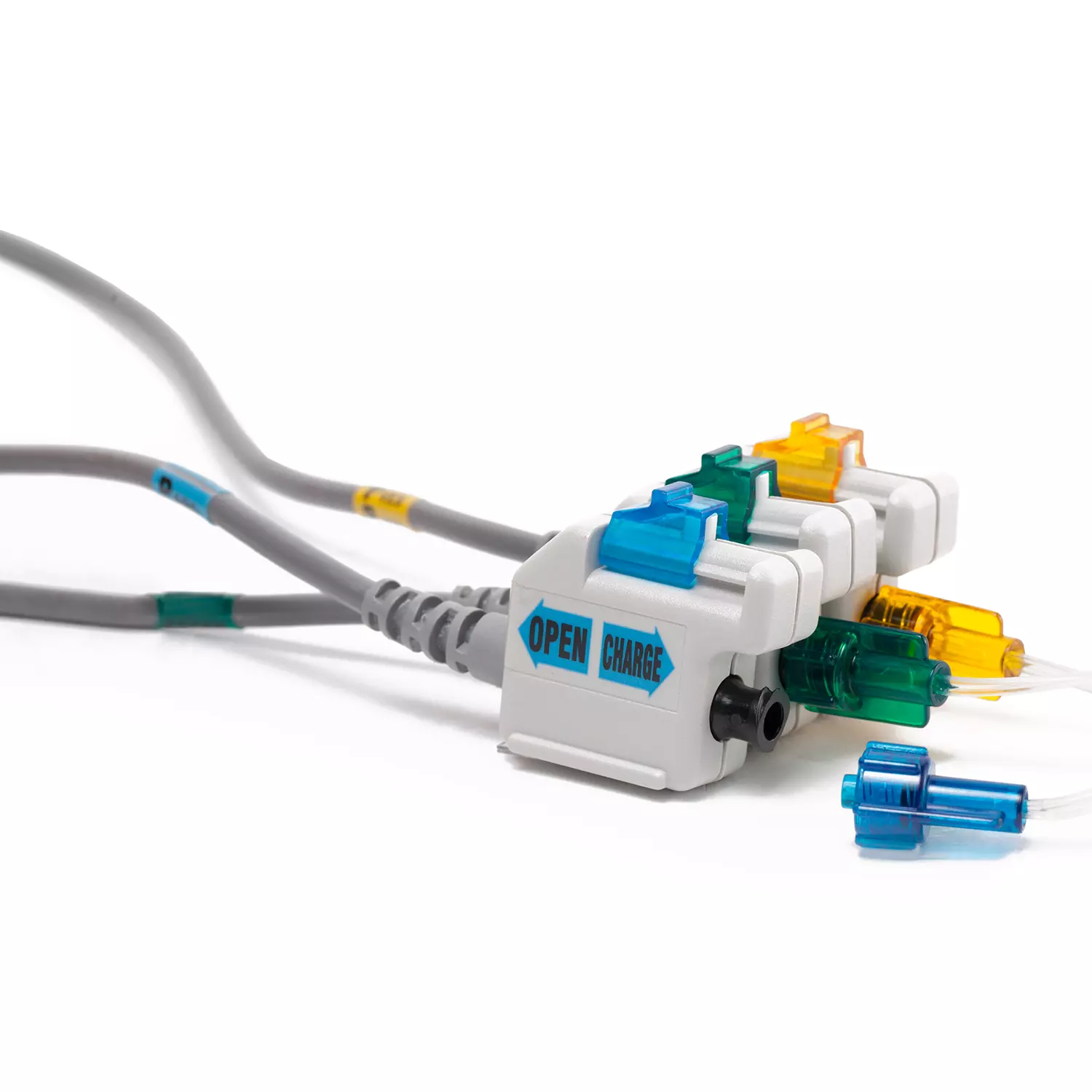

T-DOC® Air-Charged™ Urodynamics Catheters & Accessories
GI Icon OB Icon UR Icon

Intelligent Cath-ID System

The NXT Platform is part of the Intelligent Cath-ID System

  • Supports best practices in single patient use of consumables to minimize risk of cross-infection and/or cross-transmission. ​
  • Catheter compatibility (T-DOC Air-Charged, fluid-filled catheters) for quality urodynamic studies. ​
  • Supports traceability, removes need for manual entry, reducing errors while automating workflow.​

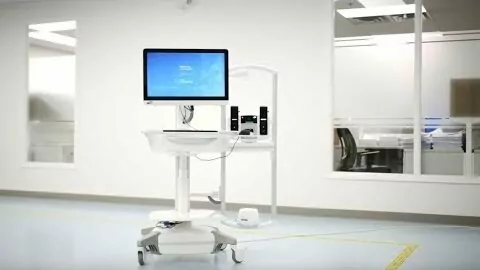

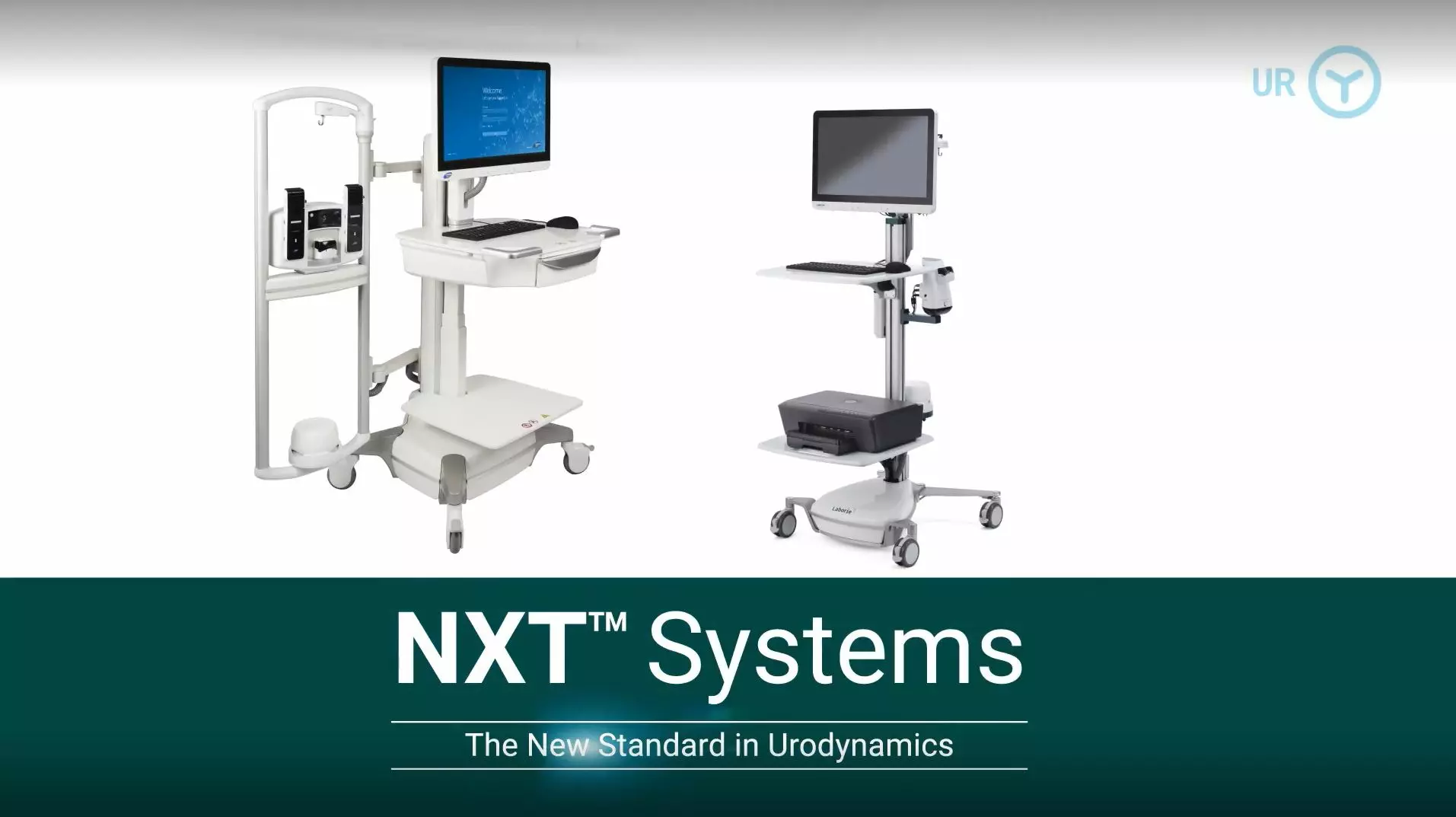

Defining the new standard for modern urodynamics. To learn more about the NXT platform – watch here!

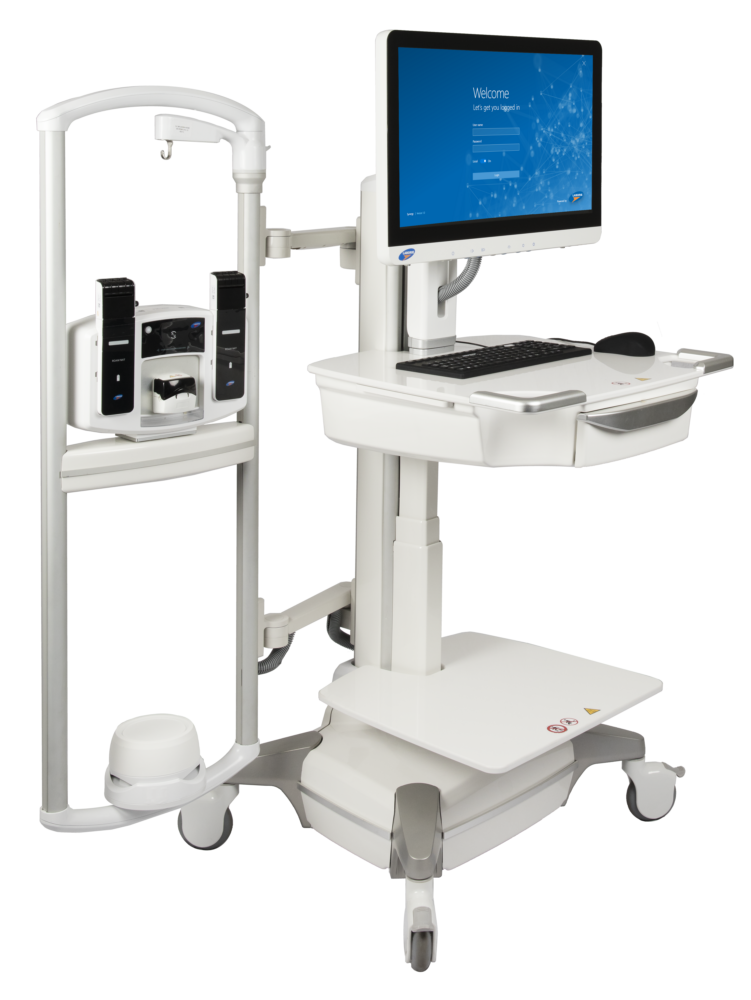

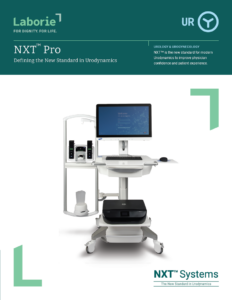

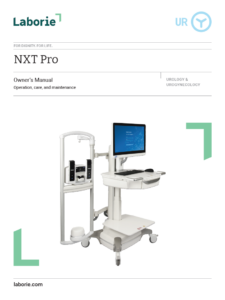

NXT PRO

  • Procedure Type: Urodynamics (UDS) and Video UDS
  • Computer: All-in-One PC, Windows 10 64-bit LTSB, 24″ LCD touchscreen
  • Pressure Transducers: 4 x T-DOC® NXT
  • EMG: 1 channel at up to 4,000 Hz
  • Catheters: Air-Charged catheters for pressure recording, featuring Intelligent Cath-ID; Fluid-filled Catheters
  • Electrodes: Lead wire patch electrodes for EMG recording
  • Other disposables: Infusion pump tubing and graduated beakers
  • Includes isolation transformer for all components
  • Power: 110V – 220V
  • Dimensions: 62-99 x 74-140 x 141-178 cm, 88 kg
  • Optional Accessories: PVC or Folding Commode

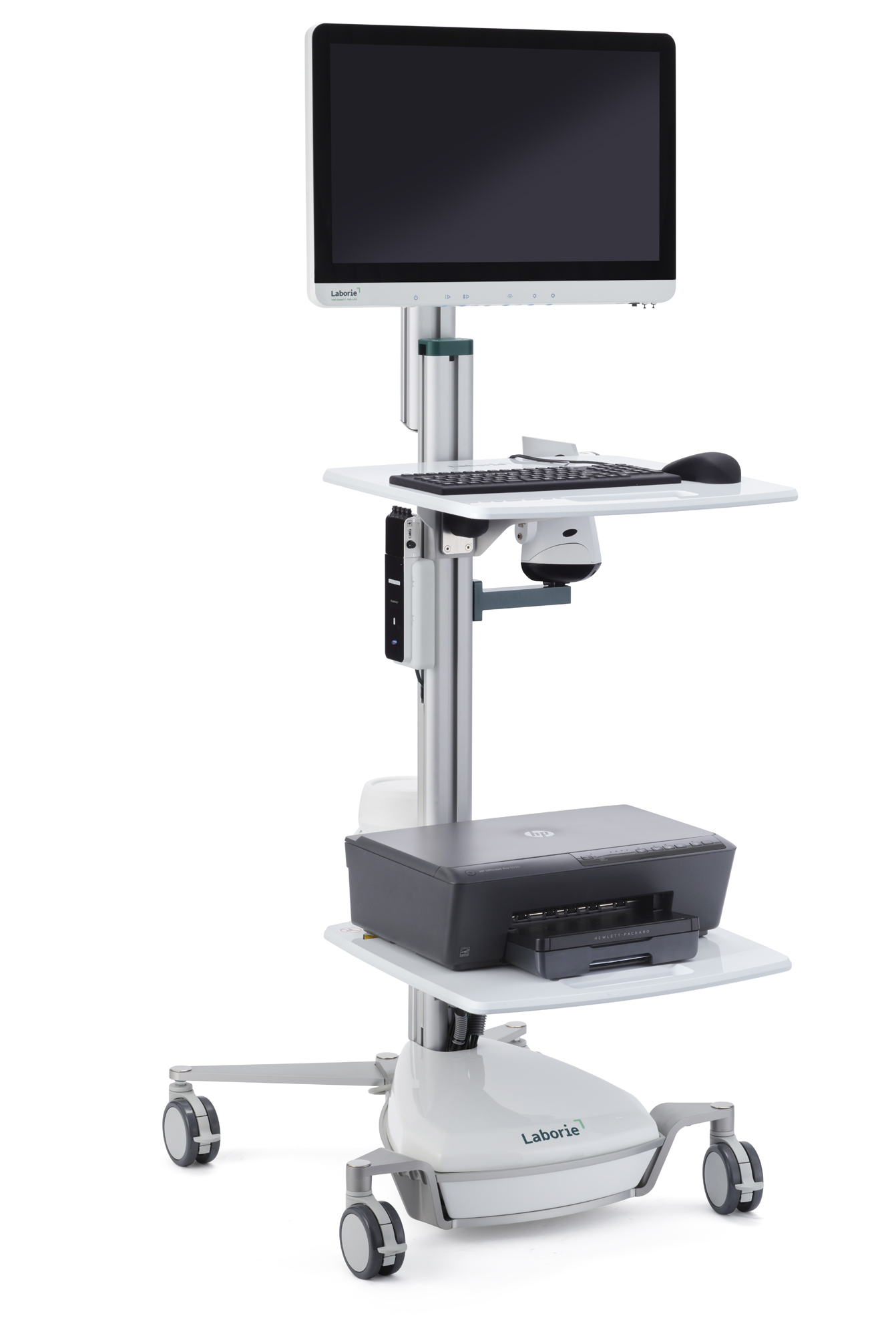

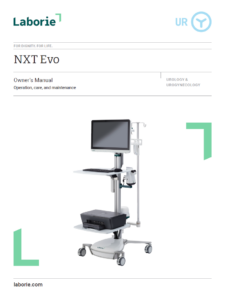

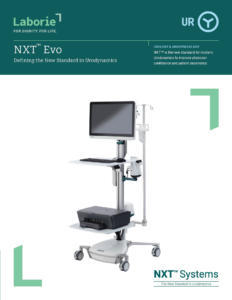

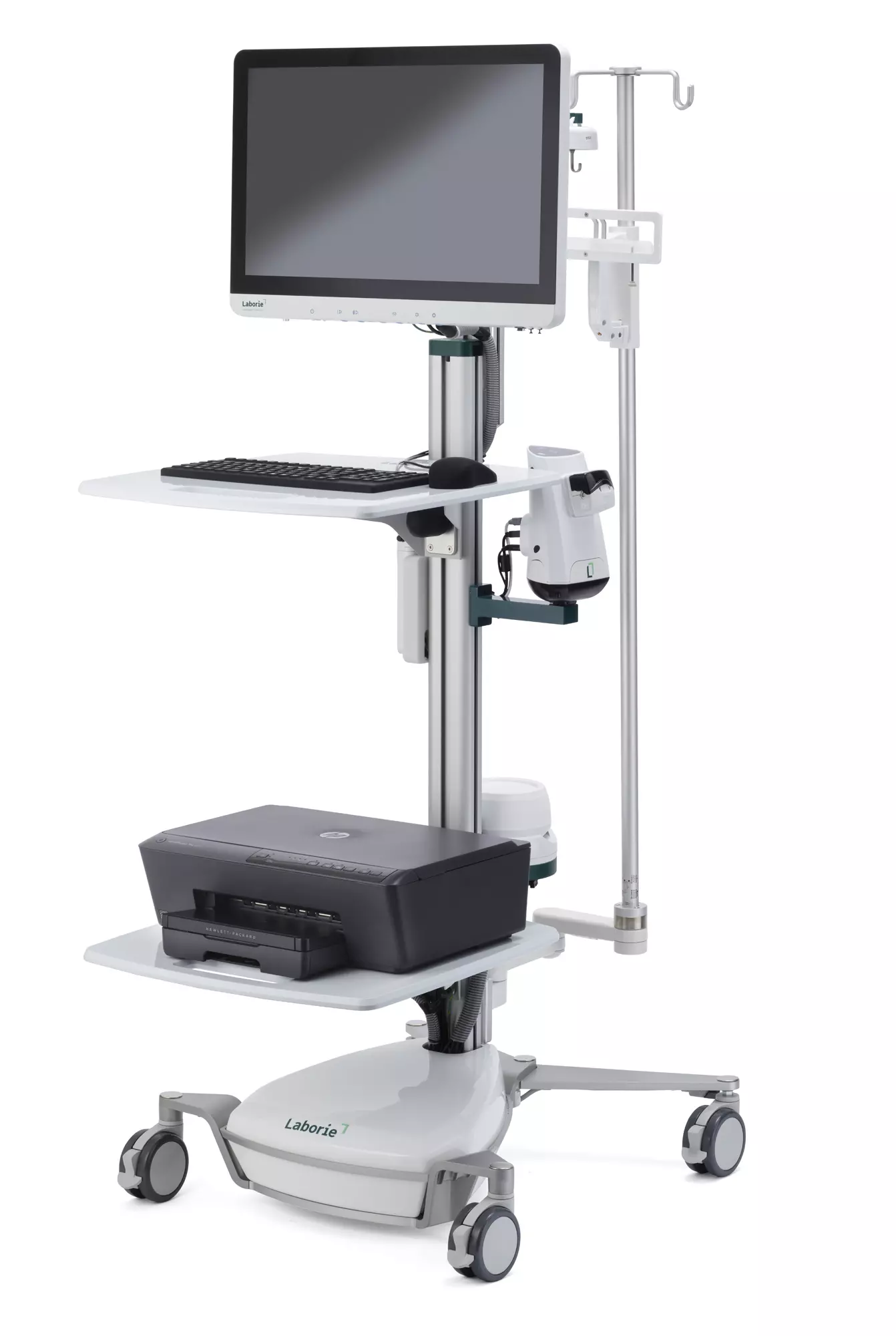

NXT EVO

  • Procedure Type: Urodynamics (UDS) and Video UDS (available in select markets)
  • Computer: All-in-One PC, Windows 10 64-bit LTSB, 24″ LCD touchscreen
  • Pressure Transducers: 4 x T-DOC® NXT
  • EMG: 1 channel at up to 2,000 Hz
  • Catheters: Air-Charged catheters for pressure recording, featuring Intelligent Cath-ID ;Fluid-filled Catheters
  • Electrodes: Lead wire patch electrodes for EMG recording
  • Other disposables: Infusion pump tubing and graduated beakers
  • Includes isolation transformer for all components
  • Power: 110V – 220V
  • Dimensions: 100 x 75 x 165cm, 80kg
  • Optional Accessories: PVC or Folding Commode, DICOM/EMR

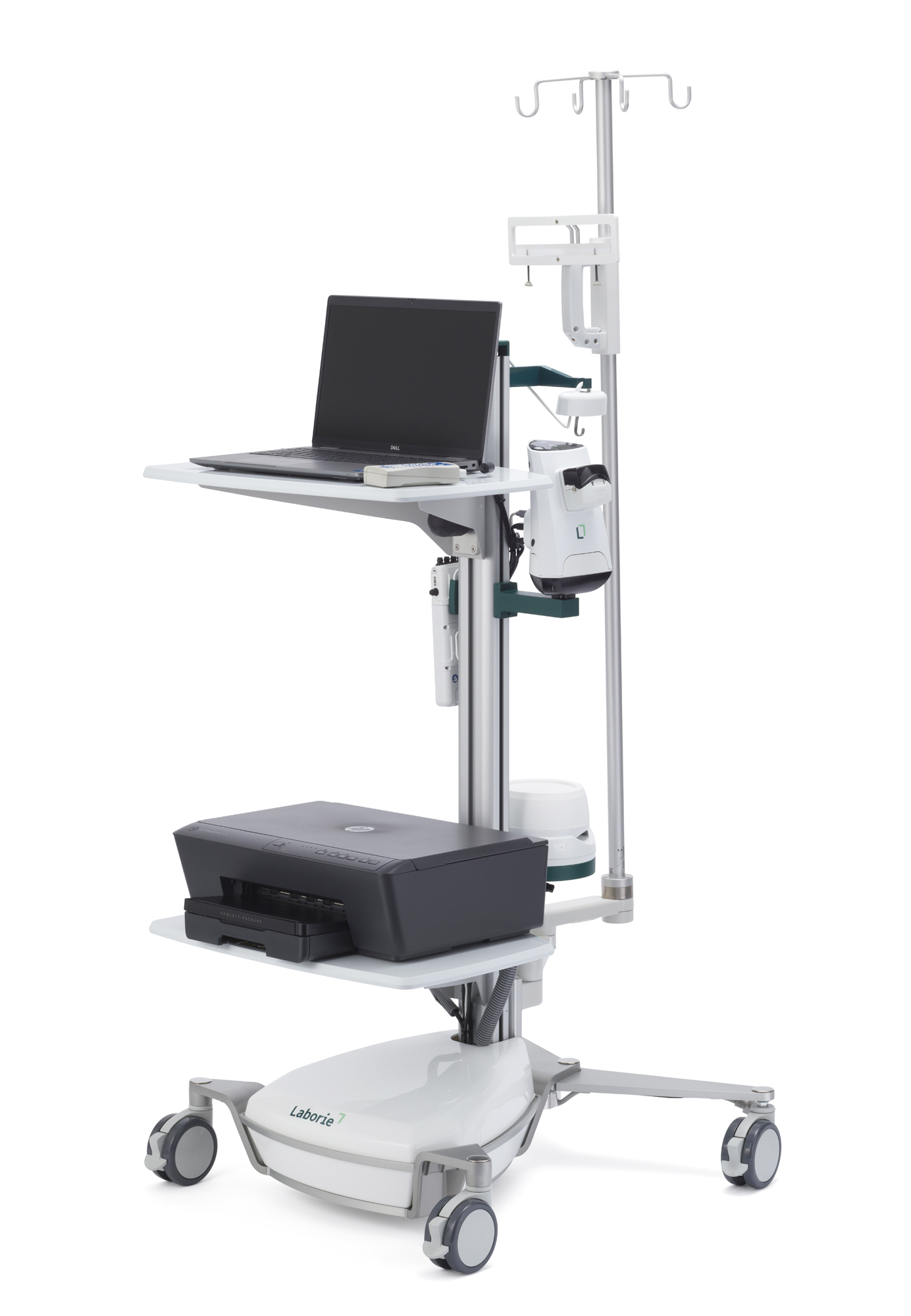

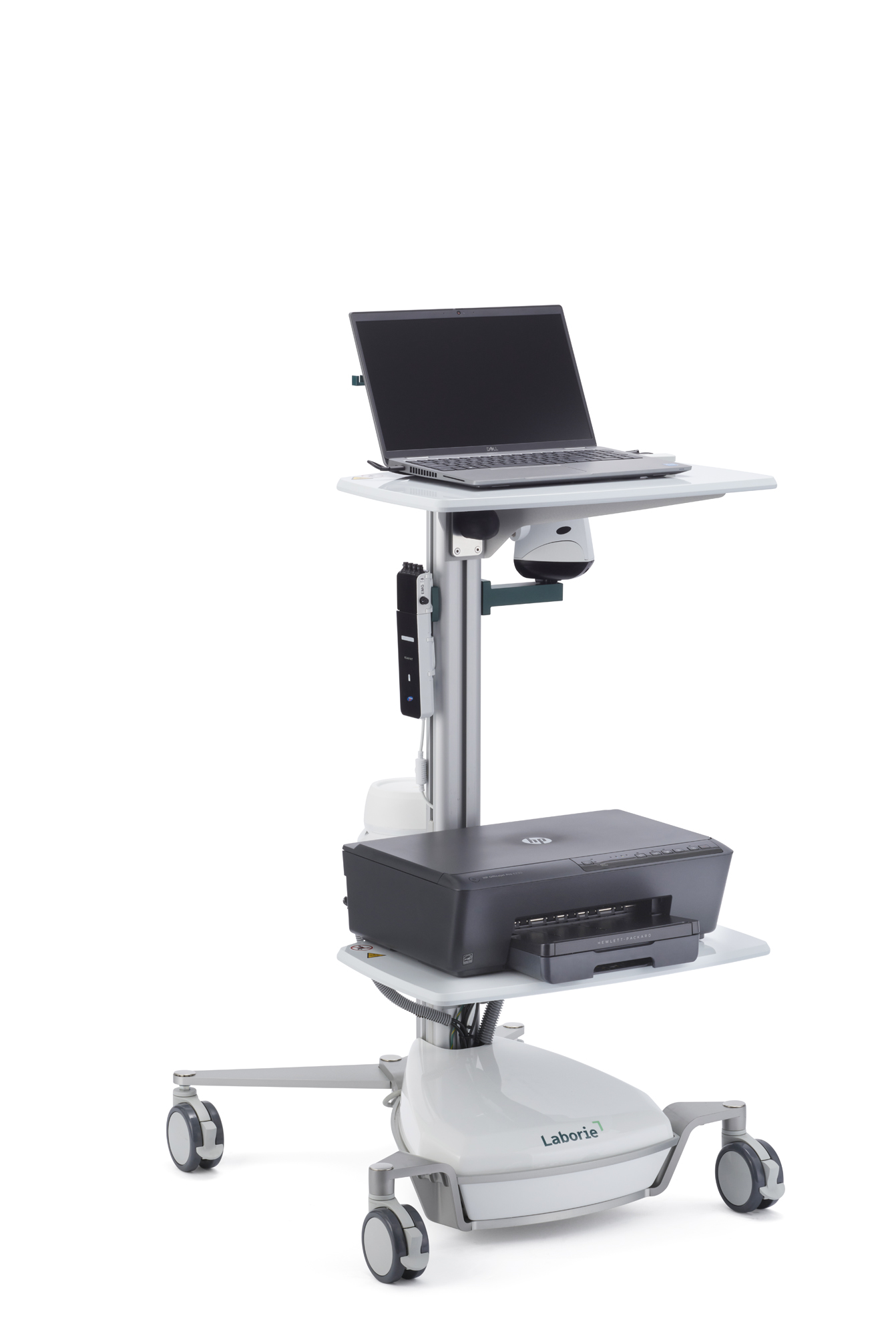

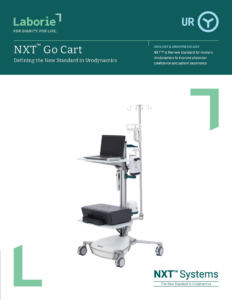

NXT GO CART

  • Procedure Type: Urodynamics (UDS)
  • Computer: Laptop, Windows 10 64-bit LTSB
  • Pressure Transducers: 4 x T-DOC® NXT
  • EMG: 1 channel at up to 1,000 Hz
  • Catheters: Air-Charged catheters for pressure recording, featuring Intelligent Cath-ID; Fluid-filled Catheters
  • Electrodes: Lead wire patch electrodes for EMG recording
  • Other disposables: Infusion pump tubing and graduated beakers
  • Includes isolation transformer for all components
  • Power: 110V – 220V
  • Dimensions: 65.4 x 58.5 x 162.3cm, 50kg
  • Optional Accessories: PVC or Folding Commode, DICOM/EMR

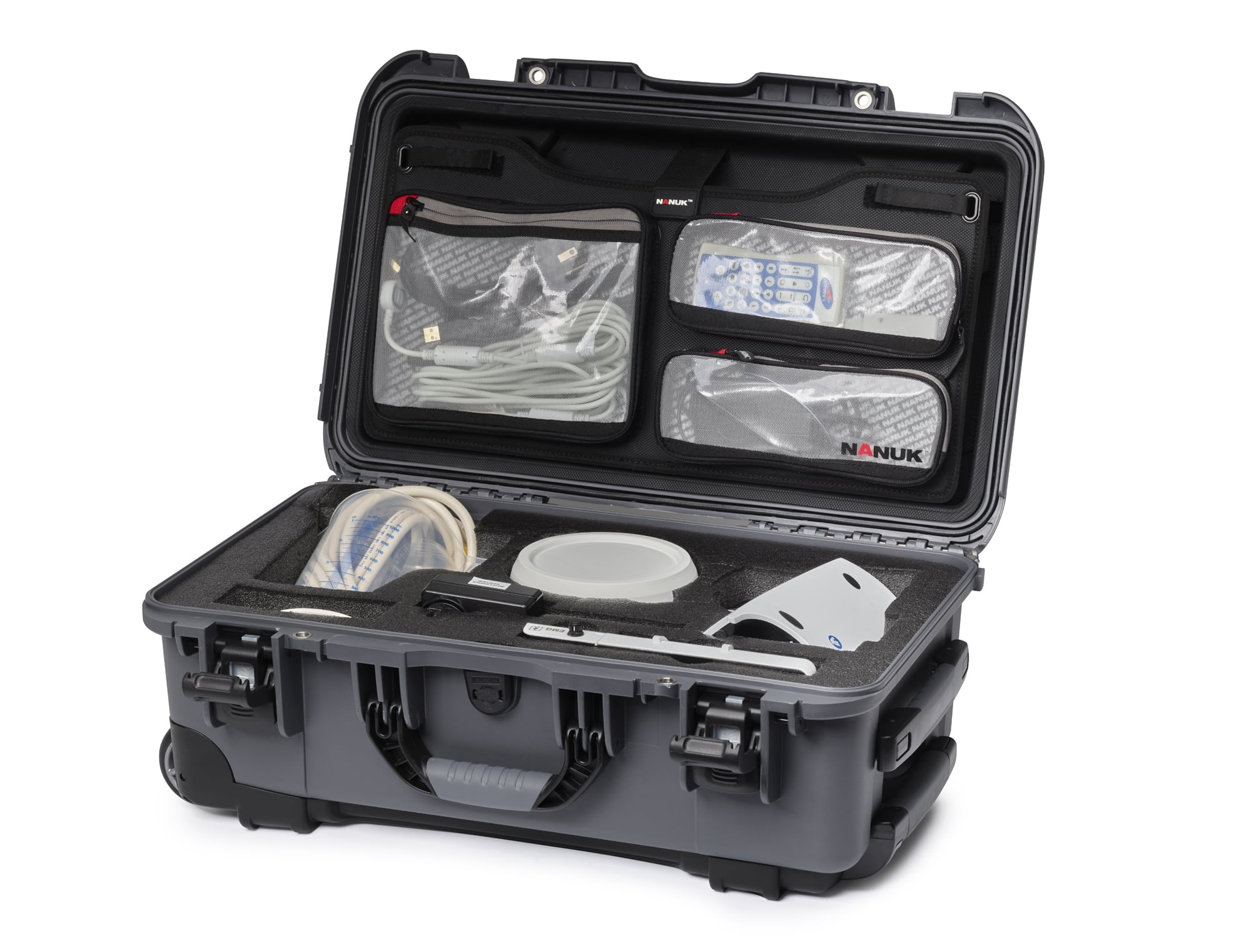

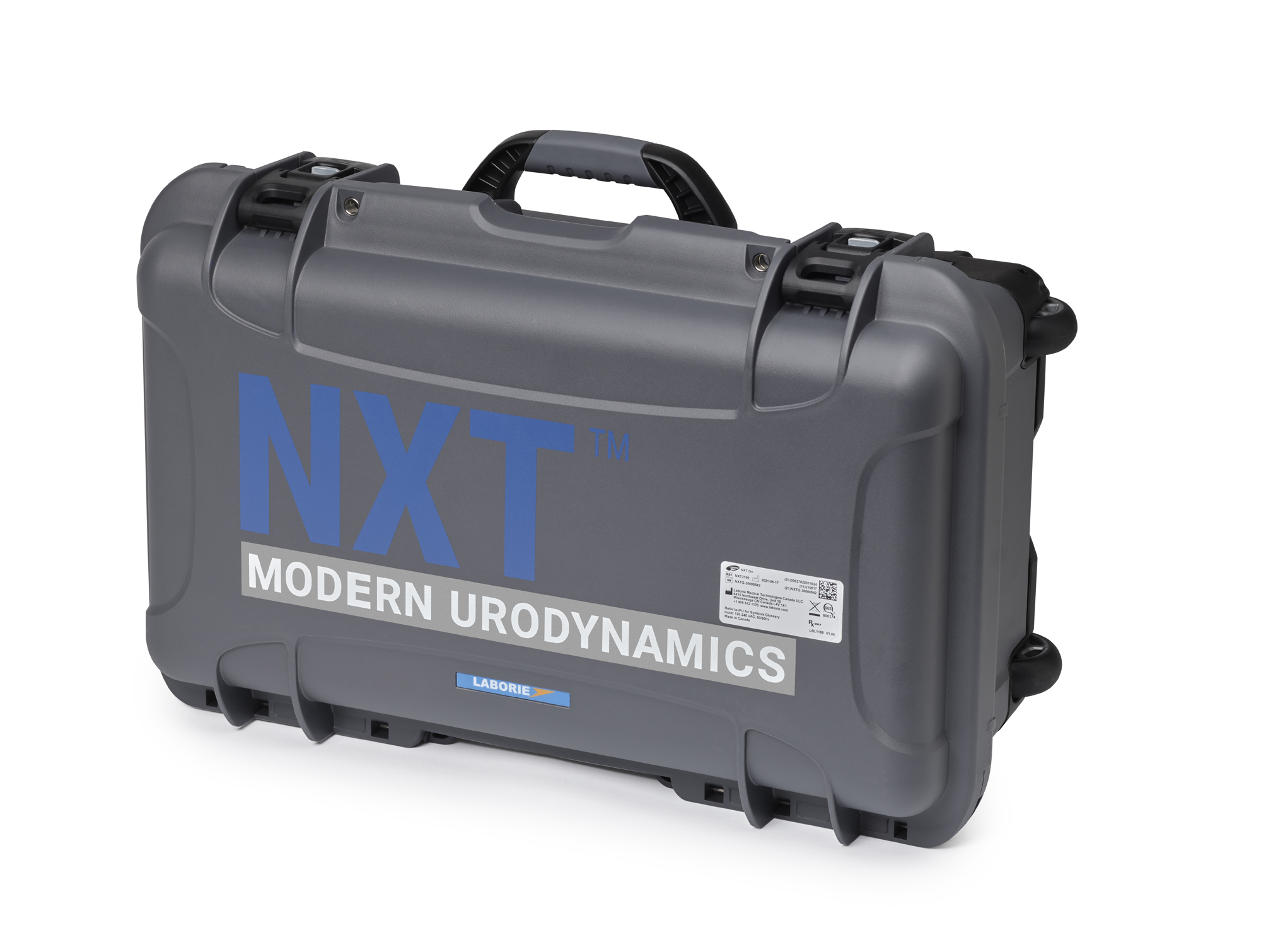

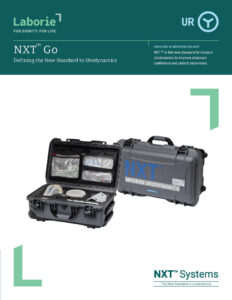

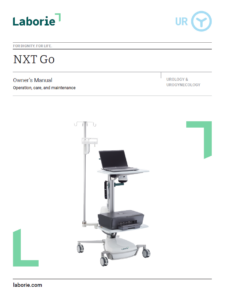

NXT Go

  • Procedure Type: Urodynamics (UDS)
  • Computer: Laptop, Windows 10 64-bit LTSB
  • Pressure Transducers: 4 x T-DOC® NXT
  • EMG: 1 channel at up to 1,000 Hz
  • Catheters: Air-Charged catheters for pressure recording, featuring Intelligent Cath-ID; Fluid-filled Catheters
  • Electrodes: Lead wire patch electrodes for EMG recording
  • Other disposables: Infusion pump tubing and graduated beakers
  • Includes isolation transformer for all components
  • Power: 110V – 220V
  • Dimensions: 55.9 x 35.6 x 22.9, 12kg
  • Optional Accessories: PVC or Folding Commode, DICOM/EMR
