NXT™ Synergy Software

Synergy: The Future of Urodynamics Software

Laborie is the largest urodynamics company with 30+ years of history, and your best in class partner offering fully customizable software solutions for urodynamics.

Together with NXT, we introduce Synergy into the market – software which provides customization on a completely new level for medical devices and offers various features including:

Customizable Workflows and Reports: Configurable workflow and reporting tools address the unique needs of academic facilities, hospitals and clinics.
Enhanced User Experience: Intuitive design, workflow guidance and seamless interface puts Synergy at the forefront of modern urodynamics.
Next Generation Decision Support and Error Prevention: Guided workflow helps in training with new staff and ensuring test consistency.

Some Laborie products may not be available in certain regions. Please contact your local Laborie Sales Representative to learn more about the products available to you

Features, Custom Configuration, Multiple Options

Features

EMG Sample Rate up to 2k (1.000 sec/sample), depending on NXT model
Up to 8 control panel rows, depending on NXT model
Up to 12 control panel columns (=96 buttons), depending on NXT model
Up to 9 visible workflow profiles (depending on NXT model, unlimited number with NXT Pro)
Supports measurements with T-DOC, water perfused catheters
Supports Intelligent CATH-ID System to support catheter compatibility, traceability and to minimize risk of cross-infection and/or cross-contamination
Allows Bluetooth connection for up to 7 devices

Custom Configuration

Allows various configurations of settings, including Graph settings, Channel settings, EMG settings and Puller settings with adjustable Puller speed (Puller requires Add-On Software)
Provides different phase configurations, such as specified Channel visibility for each phase, configure control panel, auto cough artifact detection, auto Bristol artifact detection
Workflows are fully customizable, which includes the review, the report and the questionnaire (IPSS,AUASI,PQOL,bladder diary)
Channel slider to change scales post-study and even during the study (NXT Evo and Pro)
Report Configuration (up to 10 depending on NXT model, unlimited on NXT Pro)
Patient management software allows for relocation of saved studies, review saved studies and re-print reports, export and import patient data (including saved studies) and export studies in .csv format (NXT Evo and Pro)

Multiple Options

Multiple options available for Cystometry, Flow and Voiding phases, including Auto Flow detection, Auto start phase, after Flow Time, PVR Dialog and automatic Post Voided Residual
Allows for different options to edit, move and display different parameters during the review phase
Channel slider to change scales post-study and even during the study (NXT Evo and Pro)

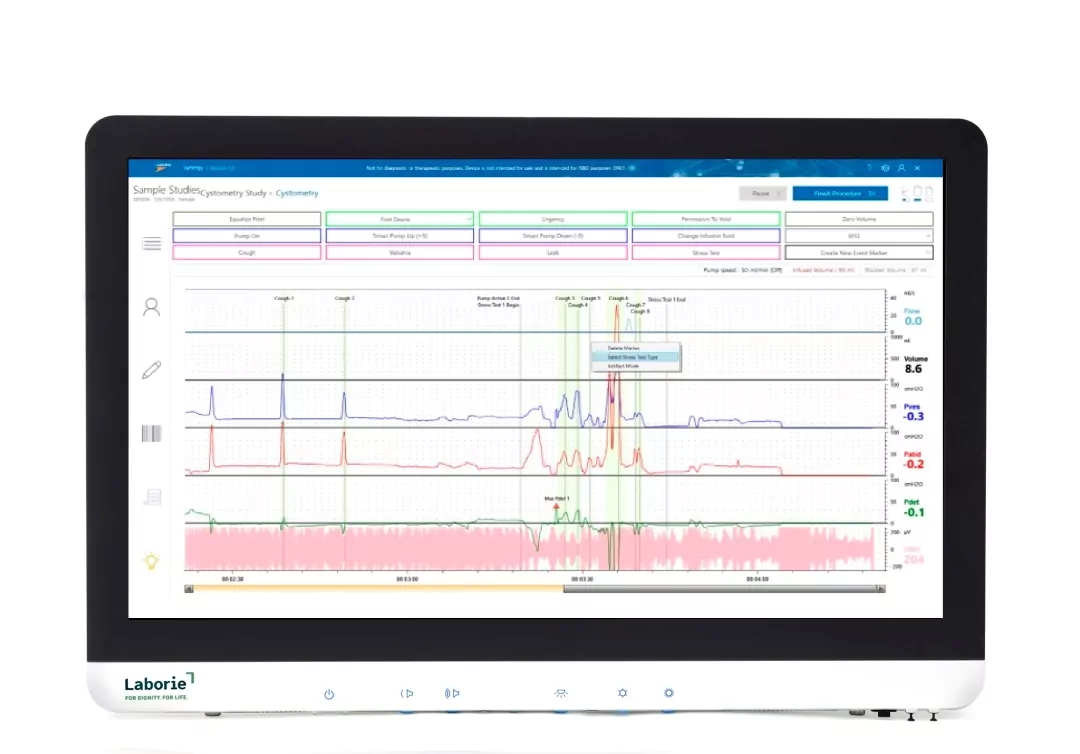

During the recording of a study, data can be recorded, channel scales and colours can be adjusted. Event markers can be placed, moved or deleted and patient history and details can be edited

View the full NXT Family

Request more information or set up an Synergy® trial today!

NXT™: Defining the new standard for modern urodynamics.

Laborie is the largest urodynamics company with 30+ years of history, and your best in class partner offering a full range of customizable urodynamics and related products.

Healthcare providers have rapid access to the support they need, expert technical services, and a support pathway for current and legacy urodynamics products, along with novice to advanced education and clinical training courses.

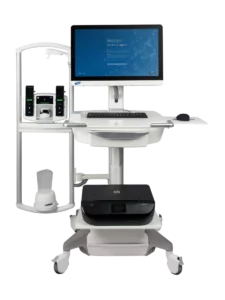

NXT is a family of systems used for urodynamics and pelvic floor assessment. These systems can display, record, and store data such as vesical, urethral, and abdominal pressures, urine flow and volume, and pelvic floor EMG from the patient for diagnostic purposes only.

NXT’s hardware, Synergy software, and suite of urodynamics consumables (T-DOC® Air-Charged, fluid-filled catheters, pump tubing, and electrodes) are designed to function in harmony as a system to provide a safe, sophisticated and seamless solution for your needs.

NXT is defining the new standard for modern urodynamics.

Some Laborie products may not be available in certain regions. Please contact your local Laborie Sales Representative to learn more about the products available to you.

What is urodynamics?

Urodynamics is the investigation of the function of the lower urinary tract – the bladder and urethra – using physical measurements such as bladder pressure and flow rate.

Urodynamic studies provide extremely valuable diagnostic data for any of the following bladder dysfunctions: Urge Incontinence, Stress Incontinence, Urinary Retention, Urinary Frequency, Hesitancy and all other storage and micturition issues.

Urodynamic testing may consist of uroflowmetry, filling cystometry, pressure-flow study, urethral pressure profiles (UPP), valsalva leak point pressure (VLPP), and electromyography (EMG).

Laborie offers the complete solution for urodynamic testing. Our diagnostic equipment can be found in hospitals, private clinics, universities and research centers. We work with leading clinician-researchers and local universities to incorporate the most recent advancements and technical knowledge into our products while reflecting practical realities of the typical pelvic floor clinic

Laborie is passionate about bringing freedom and dignity to patients suffering from pelvic floor disorders through innovation in diagnostic and treatment options.

Learn from urodynamics experts

Learn the personal perspective from experts in the field about the role, benefits and optimal usage of urodynamics.

WATCH VIDEO SERIES

Available Software Add-Ons for Synergy:

EMR/Networking: HL7/DICOM (included with NXT Pro)
UPP: Software Add-On for performing Urethral Pressure Profile (NXT UPP Puller required)
Video-Option: Software Add-On for performing Video Urodynamics (only available for NXT Pro, included)

System Requirements:

Hardware: NXT Go, GO Cart, EVO or Pro system

OS: Windows 10 64 Bit System

Network: Broadband Internet connection (if connection required)
