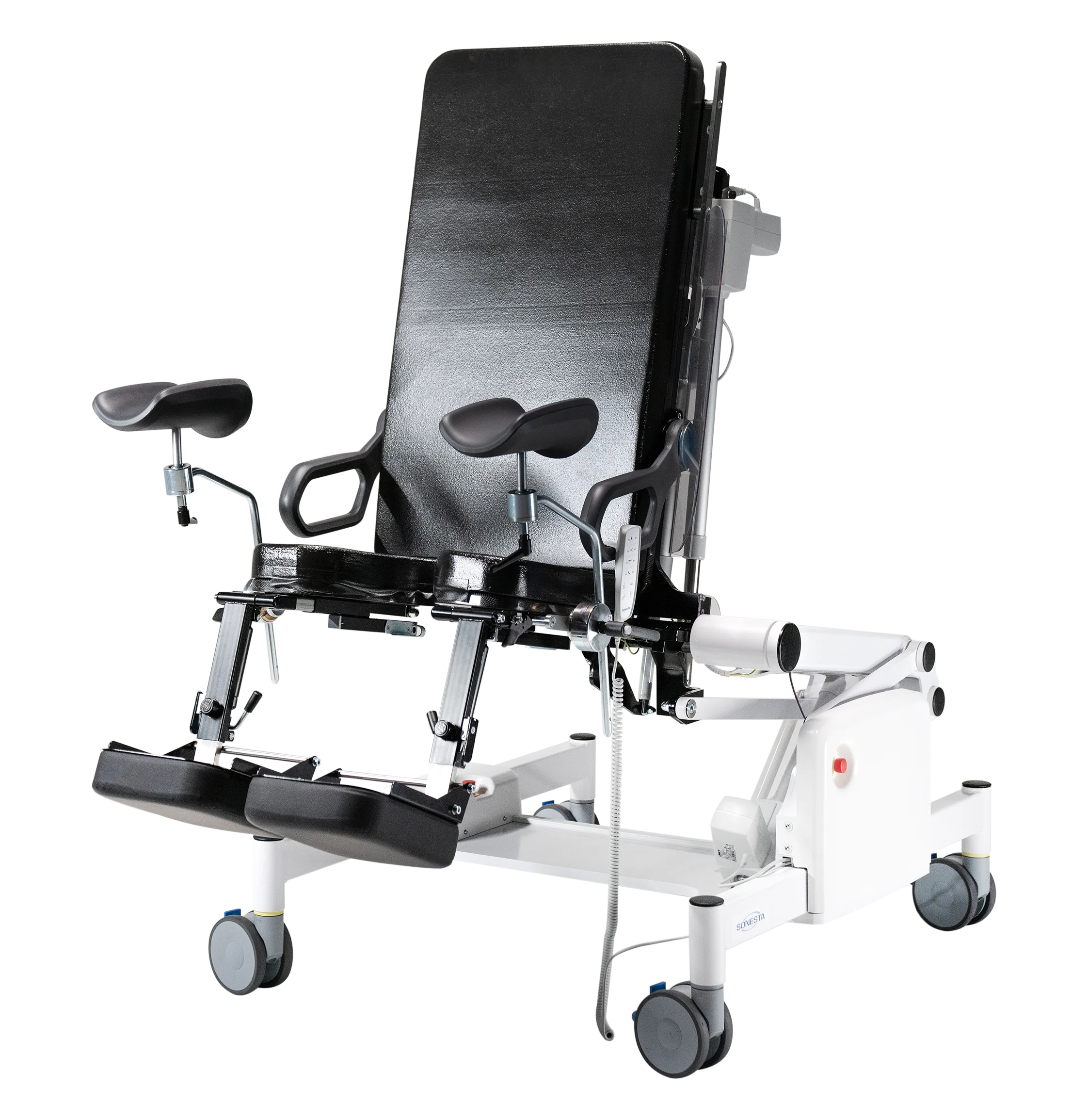

SONESTA F3 – Video Fluoroscopy Table

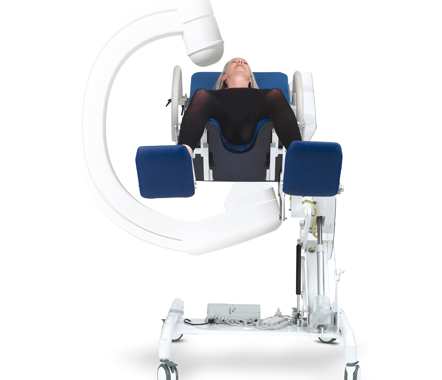

The F3 is a unique procedure table designed for full fluoroscopic imaging of the urinary tract during video Urodynamics procedures, with carbon-fiber support for use with a C-arm. The table has been developed to ensure optimal patient comfort, while focusing on facilitating the positioning of the patient safely and precisely during video fluoroscopy or urology examinations and procedures. The new updated design is optimal for the best hygiene when cleaning.

What’s new?

Brand new design
Low weight and strong motors with silent and high-speed performance
Four pre-set positionings that simplifies examinations
Electronic and automatic Trendelenburg
Back-up battery
Improved safety switch buttons for easier access in emergency situations
Hand control with easy touch tactile switches for 12 different positionings of the chair
New mattress color
Rotatable armrests

Some Laborie products may not be available in certain regions.

Please contact your local Laborie Sales Representative to learn more about the products available to you.

SON774/SON778
UR-BRO-001-EN-MKT-01349[AP-Sonesta F3 Brochure US

Features

Radiolucent carbon fiber seat and back for head-to-toe imaging
Three motors enable unparalleled positioning which provides easier access to and visualization of the perineal area

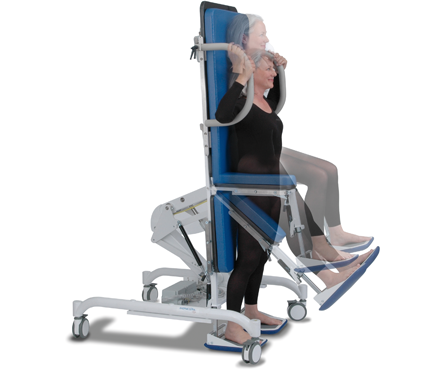

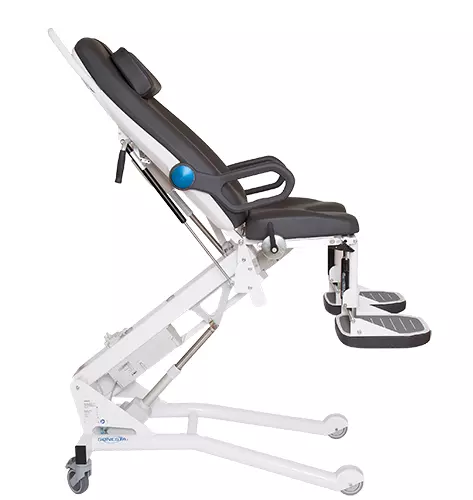

This versatile chair easily adjusts from/to standing, seated and supine positions, making it easily accessible to all patients
The versatility allows the patient to remain in one place during the whole urodynamic test and eliminates the risk of catheters falling out or getting misplaced during transfer or ambulation
The chair can bare patients up to 551 lbs / 250 kg

Read more Read less

Request more information or set up a Sonesta trial today!

Procedures Commonly Performed in the Sonesta Chair:

Urodynamics
Cystoscopy
Biopsy
Pelvic Muscle Rehabilitation
Pelvic Exam
Anorectal Manometry
Ultrasound
Vasectomy
Colposcopy
Colonoscopy
Gynecologic Procedures

onest

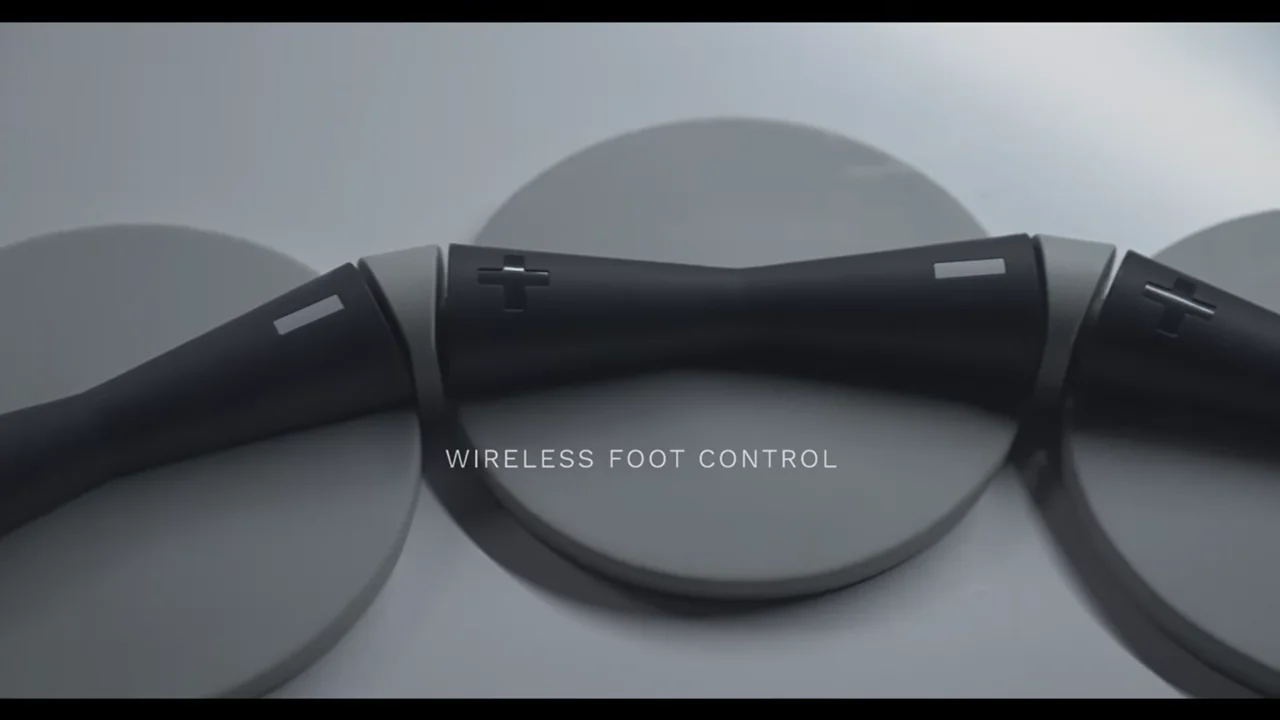

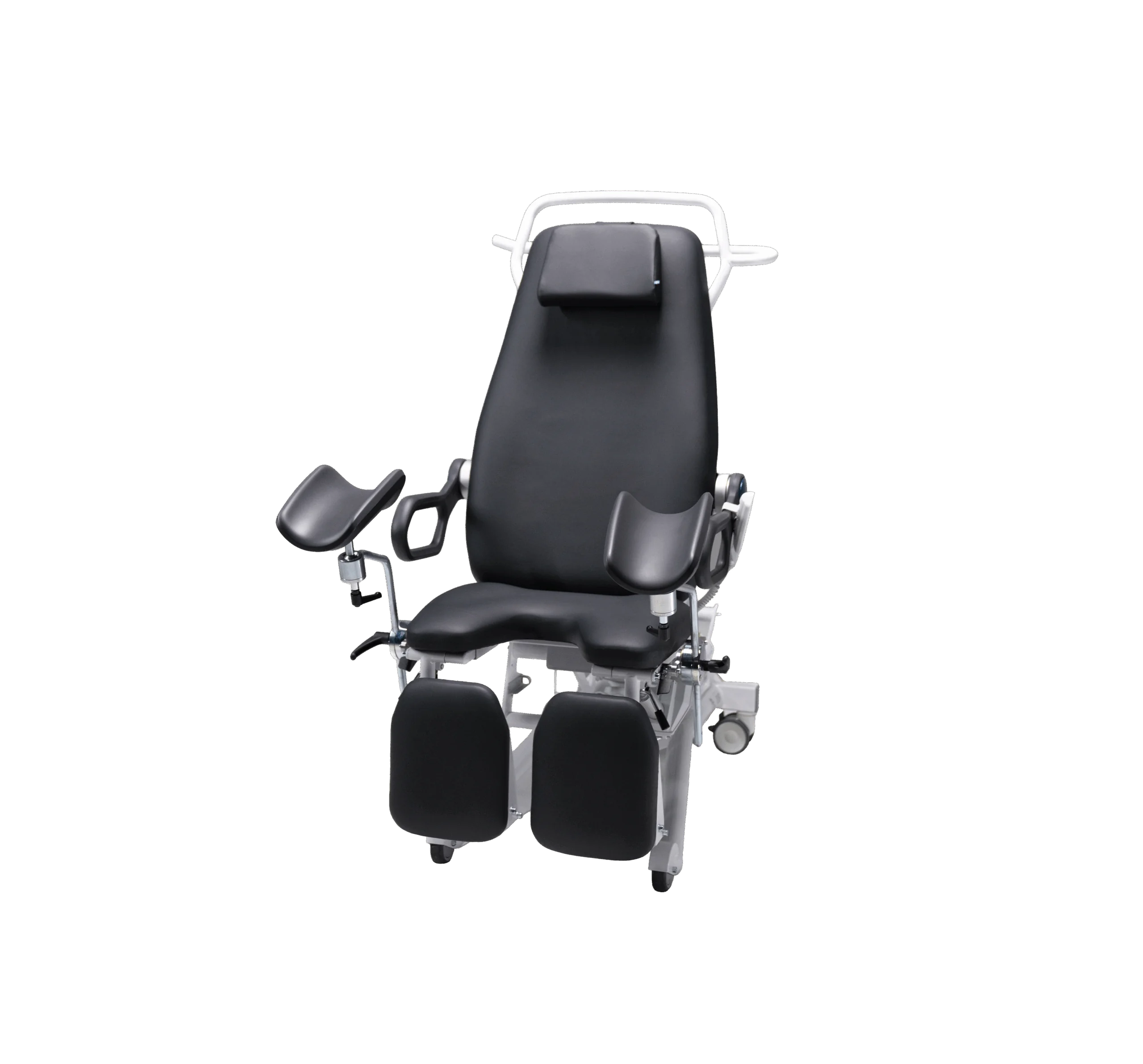

Sonesta P3 Product Video

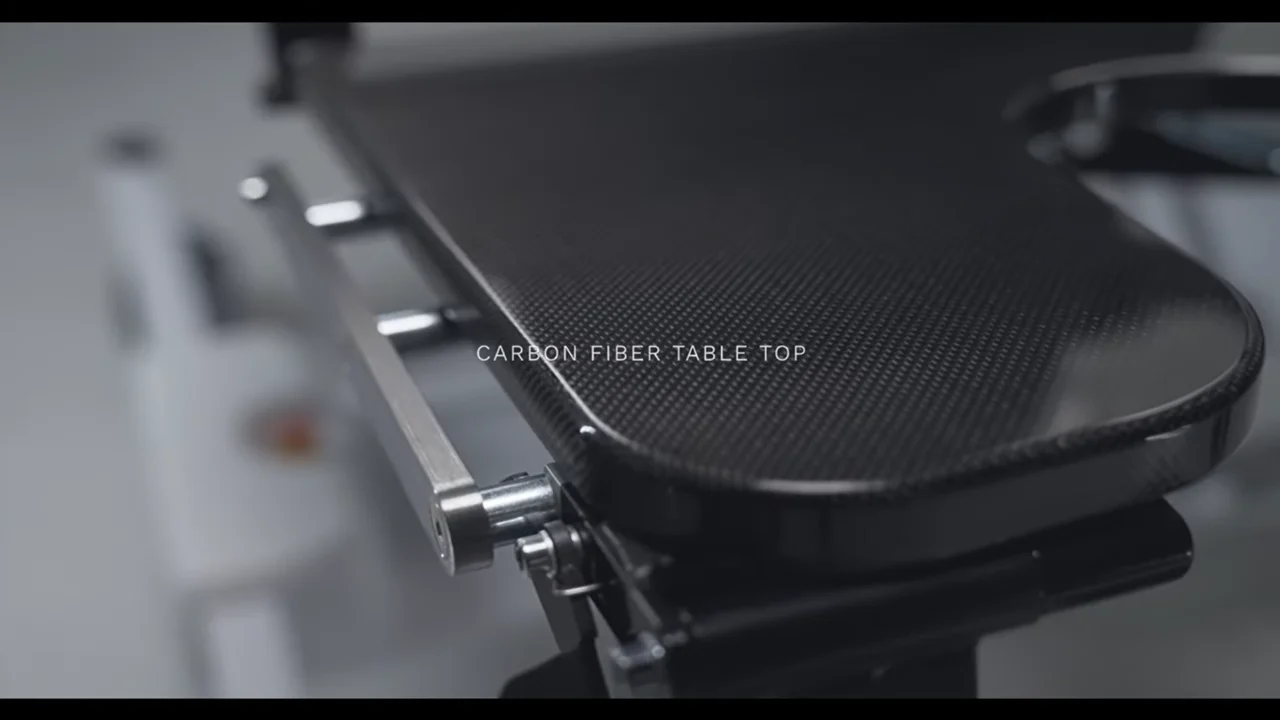

Sonesta F3 Product Video

Sonesta F3 – Video Fluoroscopy Table

Specifications:

Lift weight Capacity: 250 kg (551 lbs.)
Power consumption: max 5.8A (120V~) 3.0A (230V~)
Input voltage: 120V ~ 60/50 Hz 230V ~ 50/60 Hz
Output voltage: 24VDC
Satisfies the requirements for EMC according to IEC 60601
Electric shock protection: Typ B (Body)
Protection against foreign objects and water incursion: IPX6
Operating cycle (Intermittent): 10%

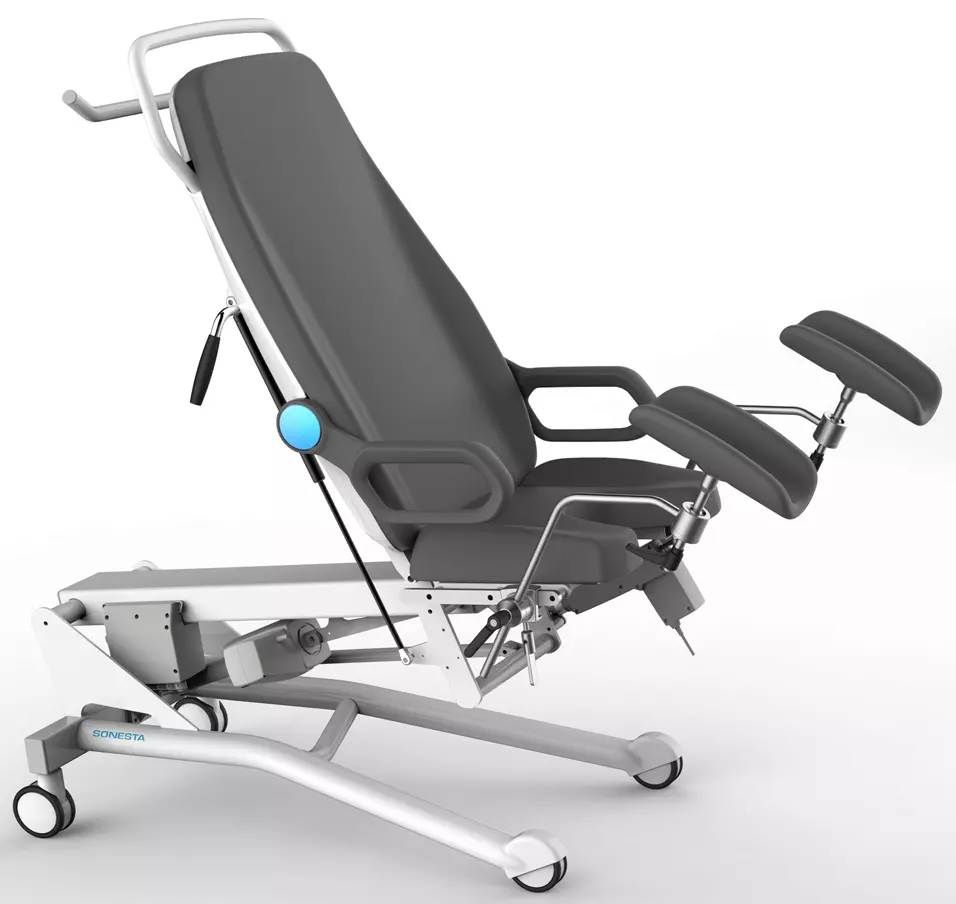

Sonesta S3 3-Motor Chair

Specifications:

CE-marked in accordance with guidelines in Medical Device Directive 93/42EEC

Length without extension cushion: 143 cm / 56”
Length with extension cushion: 193 cm / 76”
Chair Width (total): 69 cm / 27”
Chair Height with seat cushion (min.): 40 cm /16”
Chair Height with seat cushion (max.): 105 cm /41”
Patient weight capactiy (max): 210 kg / 465 lbs
Wheel diameter (2 lockable + 2 directional): 10 cm / 4”
Net weight: 83 kg / 183 lbs
Power consumption: Max 2,.8A (120V~) 1,87A (230V~) & 3,9A (100V~)
Power Input voltage: 120 ~ 430V 50/60 Hz 230V ~ 430VA 50/60 Hz
Power Output voltage: 24VDC
Electric shock protection: Type B (Body)
Protection against water incursion and foreign objects: IPX6
Operating cycle (Intermittent): 10%
